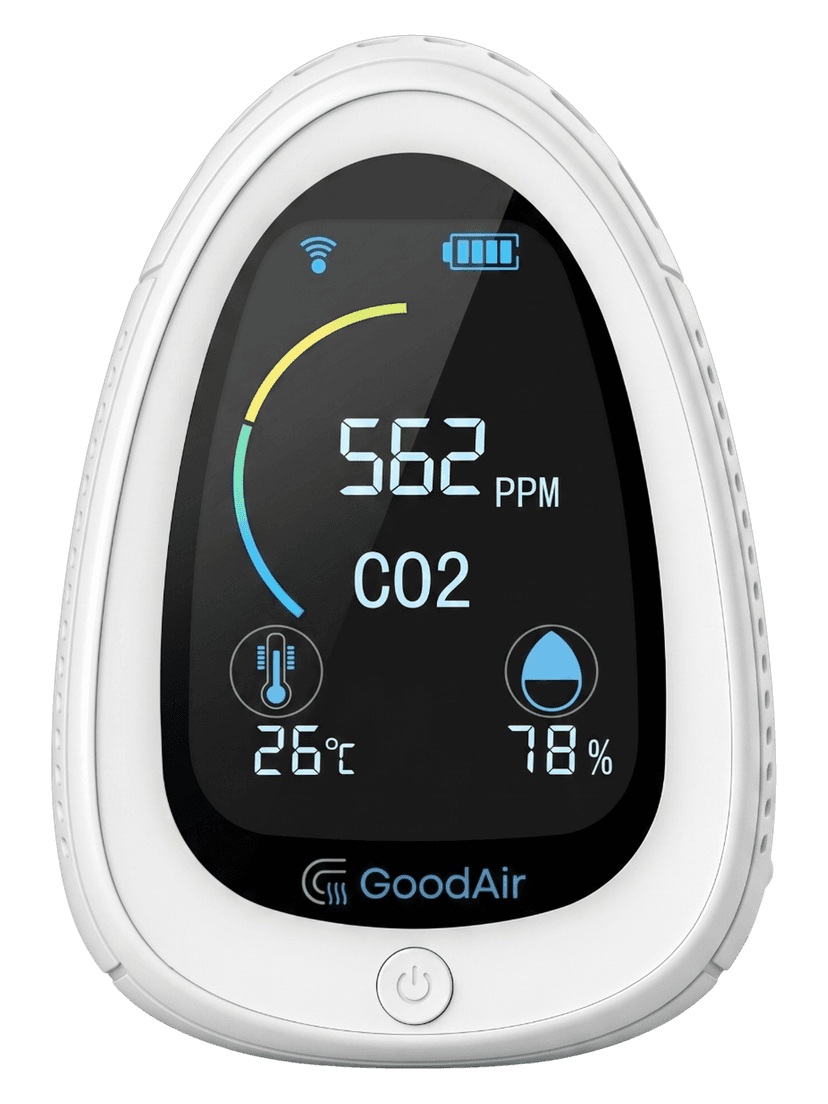

PT01: Essential Indoor Air Quality Monitoring
Compact 4-in-1 CO2 sensor for offices, clinics, and service counters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PT01 (4-in-1 Wi-Fi) |
| CO₂ Range | 400–5000 ppm |
| CO₂ Accuracy | ±5% |
| Temp Range | 20°C – 60°C |
| Temp Accuracy | ±2°C |
| Humidity Range | 5% – 95% |
| Humidity Accuracy | ±5% |
| Power | Rechargeable battery + USB |
| Material | Fire-resistant ABS + LCD |
| Dimensions | 102 × 52 × 140 mm |
| Weight | 325–335 g |
| Warm-up Time | < 7 seconds |
| Connectivity | Wi-Fi 802.11 b/g/n |
Best-Use Applications
- Office workstations and meeting rooms
- Service counters and reception areas
- Clinics and small medical facilities
- Retail shops and customer-facing spaces
- Classrooms and training rooms
Connectivity
The PT01 connects to your existing 2.4GHz Wi-Fi network (802.11 b/g/n). Sensor data is accessible via the web interface. No additional gateway required for basic connectivity.
Installation Guidance
Location
Mount or place sensor in a representative location within the monitored area. Avoid direct sunlight, ventilation outlets, and heat sources. Maintain clearance from walls (minimum 30cm) for accurate readings.
Power
PT01: Insert batteries or connect USB cable to power adapter.
Network
Ensure Wi-Fi coverage at sensor location. Connect sensor to 2.4GHz Wi-Fi network (802.11 b/g/n). Configure network credentials via device setup process.
Warm-Up
Allow sensor to warm up for 7 seconds after power-on before readings stabilize. Full sensor stabilization may take up to 30 minutes in new environments.
Frequently Asked Questions
The PT01 uses NDIR (non-dispersive infrared) CO₂ sensing technology with a range of 400–5000 ppm. Accuracy is ±5%.
Ready to deploy GoodAir PT01?
Contact our Singapore team for quotation and calibration services.
